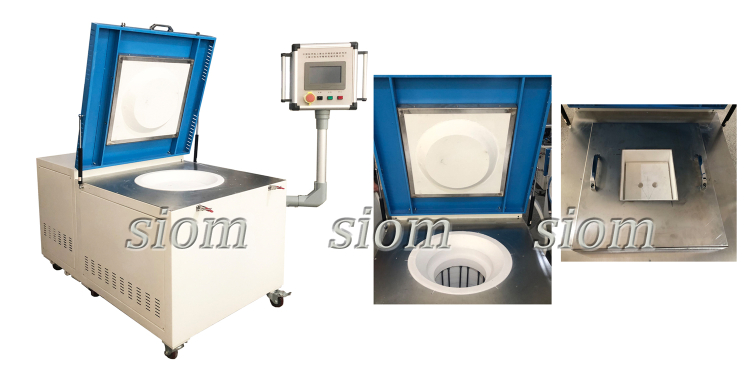

Cantilever High Temperature Well Type Furnace
Production Description:
The cantilever high temperature well type furnace uses the top-opening type furnace door, which uses the double shell construction and the temperature control system. The furnace chamber uses the alumina poly-crystalline fiber material, which has the good insulation and the ability of salving energy.
Main Uses And Application Scope:
Suitable for ceramics, metallurgy, electronics, glass, chemical industry, machinery, refractory materials, special materials, building materials, metal, non-metal, alloy materials tempering, annealing, quenching, solid solution treatment, aging treatment and other heat treatment, and its phase transition process analysis, production and development of equipment.
Main Functions And Features:
1.The furnace adopts alumina poly-crystalline fiber material, good thermal insulation performance, durable, high tensile strength, no stray ball, high purity, energy saving effect is obvious;
2.The heating element adopts electric silicon molybdenum rod;
3.The shell can be selected Q235/304 stainless steel design, the inner tank can be selected 310S stainless steel material;
4.Open power, leakage protection, high temperature alarm, to ensure the use of equipment.
5.Our software equipment through 485 or USB interface and computer interconnection, can achieve a single or multiple electric furnace remote control, real-time tracking, history, output reports and other functions; Paperless recording device can be installed to realize data storage and output;
6.Optional through the touch screen operation of the vacuum system, inflation system, temperature control system for program control, simple operation.
