Model No: SG-GL1100,SG-GL1600 SG-GL1200 SG-GL1700 SG-GL1400 SG-GL1800

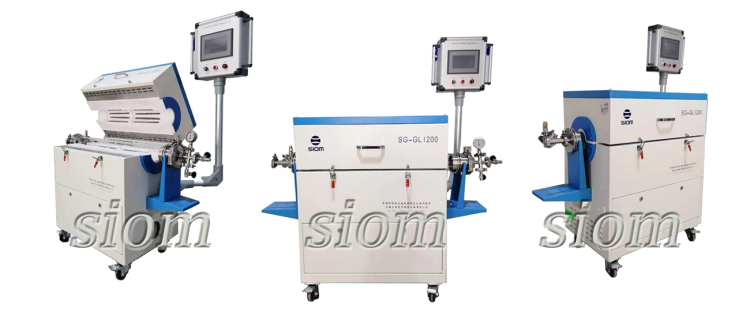

Cantilever Tube Furnace

GL series tube furace adopts advanced technology research and production of high-performance andenergy-saving new electric furnace, there are single tube, multi-tube, horizontal, vertical, open, singletemperature zone, double temperature zone, multi-temperature zone and other tube furace types.Theequipment is mainly used in research institutes, industrial and mining enterprises for experiments and smallbatch production.lt has the characteristics of simple operation, high temperature control precision, good heatpreservation effect, large temperature range, good fumace temperature uniformity, multi-temperature zonesingle control, large atmosphere and vacuum selection range.

Quantity :

add to cart

Contact Now

Product Description:

Cantilever tube furnace adopts high purity alumina fiber integrated molding, good thermal insulation performance, double-layer furnace shell is equipped with air cooling device, heat preservation, cooling uniformity, this equipment for the second temperature zone using resistance wire heating, each temperature zone can be set according to the process requirements, temperature control using touch screen HD true color LCD display, graphic interface real-time display, PLC automatic control, the ability to pre-store multiple product processes, real-time display of rising and cooling curves, current, voltage, air flow, pressure and other functions, configuration software can achieve mobile phone or computer remote control, simple operation, beautiful appearance.

Main Uses And Applicant Scope:

It is suitable for uniform calcination and reaction experiment of powder material, granular material, activated carbon and coking coal industry.
