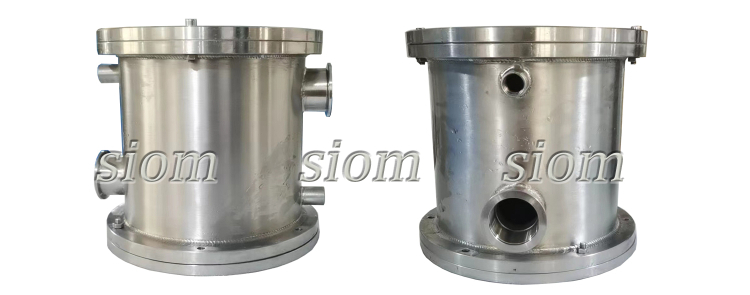

Condensation Collecting Tank

The 304 stainless steel water-cooled collection tank is precision-welded for leak-proof performance and installed at the front-end interface between the vacuum pipe and vacuum pump. The system features:

• Manual ball valve on the connecting pipe for controlled gas flow regulation

• Integrated operation with the mechanical pump – both activate during rubber discharge to direct exhaust gases into the water-cooled chamber

• Efficient cooling to condense vapors and capture particulate matter

This configuration ensures safe venting of process gases while maintaining vacuum system integrity.
