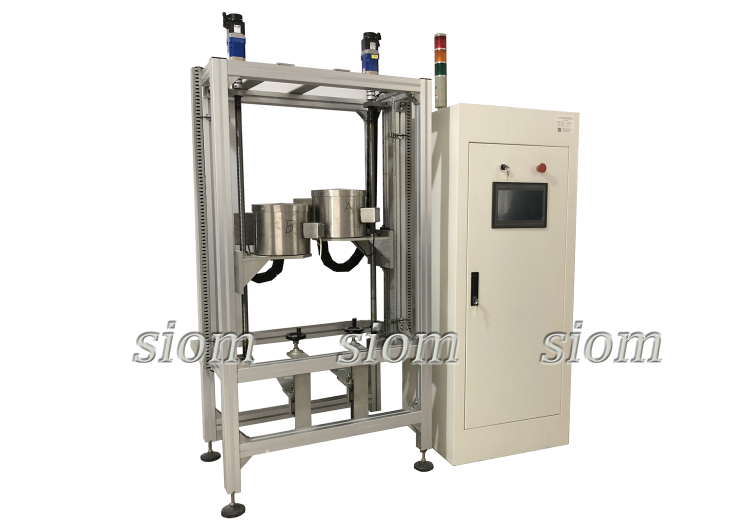

Designated metering equipment of Metrology Institute
Process Description:
1. The melting and metering equipment in the metrology institute is equipped with two temperature fields, allowing for comparative experiments with different growth rates and compositions.
2. The thickness and length of the insulation layer in the zone-melting furnace chamber can be fine-tuned manually to determine the temperature gradient. The temperature measurement hole in the chamber enables the measurement of the required temperature gradient and suitable temperature field for crystal growth.
3. The length of the growth axis is 800mm.
4. The automatic moving rate is 5~10mm/hour (with a control accuracy of 0.1mm).
5. The rapid moving rate is 5-20mm/minute.
6. The equipment includes two sets of stainless steel temperature field frames.
7. The upper and lower trays are adjustable and equipped with vacuum KF interfaces.
8. It features an independent control cabinet with a liquid crystal touch screen display for data storage and output. Data can be copied to a computer via a USB drive, and the real-time curve display makes program setting faster and the equipment operating status more intuitive. The setting data and operations are presented in a graphic and text interface for easy operation. For data storage and output, multiple heating curves can be preset, and data can be copied to a computer via the USB interface for long-term storage.
Technical Parameter:
Production Model | SG-QRL800 |
Boundary Dimension | 850*550*1500mm |
Dimensions Of Individual Control Cabinet | 450*400*950mm |
Zone Furnace Chamber Size | Ф40*100*10mm, Ф40*100*10mm |
Number Of Zone Furnace | 2 sets (equipped with temperature gradient control holes) |
Furnace Material | High purity alumina fiber |
Overall Dimension | According to the actual formulation |
Working Power Supply | 220V/50Hz |
Service Temperature | ≤50-750℃ |
Design Temperature | 800℃ |
Recommended Heating Rate | 1~15℃/min |
Temperature Control Mode | Intelligent PID adjustment, microcomputer control, 30 programmable temperature control, no need to guard (automatic rise, fall, heat preservation) |
Temperature Control Accuracy | ±1℃ |
Weight | Actual manufacturing |
Heating Element | Resistance wire |
Temperature Measuring Element | K-Type thermocouple |
Note: Customized furnace chamber sizes are available. Please specify any other special requirements when ordering.
Experimental Furnace from Shanghai Institute of Optics and Fine Mechanics, Chinese Academy of Sciences - Quality Advantages:
1. Furnace Shell and Chamber
① Double-layer high-quality carbon steel plate with a rust-resistant and high temperature resistant painted surface.
② Aesthetically pleasing and energy-efficient high-temperature furnace chamber made of poly-crystalline alumina fibers.
2. Electrical Components and Temperature Control
① All electronic components are sourced from Delixi, with thyristors being original equipment from Japan or Germany.
② For safe and efficient operation, an imported all-copper isolated transformer is used.
③ Temperature control and detection are fully implemented using:Single platinum-rhodium (Type S) thermocouples for temperatures up to 1500℃; Double platinum-rhodium (Type B) thermocouples for temperatures up to 1800℃.
3. Research Team
Experienced senior engineers, holding master's and doctoral degrees in engineering from the Shanghai Institute of Optics and Fine Mechanics, Chinese Academy of Sciences, are available to assist your company or research institute in selecting the appropriate experimental furnace. Our senior designers can also collaborate with you to develop a customized high-temperature furnace design plan.
