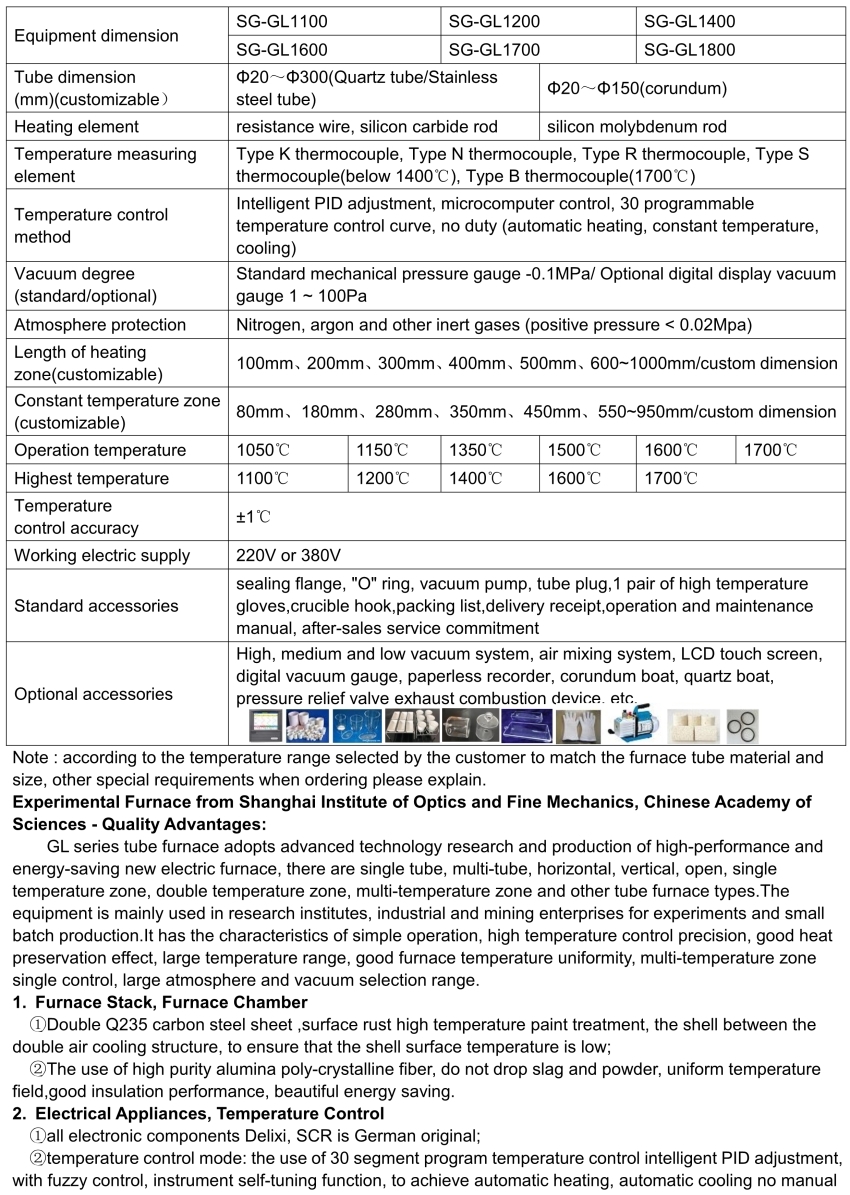

Model No: SG-GL1100,SG-GL1200,SG-GL1400,SG-GL1600,SG-GL1700

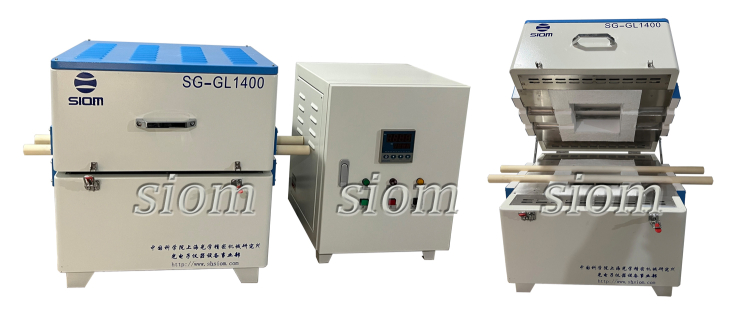

Double-Tube Vacuum Furnace

GL series tube furnace adopts advanced technology research and production of high-performance andenergy-saving new electric furnace, there are single tube, multi-tube, horizontal, vertical, open, singletemperature zone, double temperature zone, multi-temperature zone and other tube furnace types.Theequipment is mainly used in research institutes, industrial and mining enterprises for experiments and smalbatch production.lt has the characteristics of simple operation, high temperature control precision, good heatpreservation effect, large temperature range, good furnace temperature uniformity, multi-temperature zonesingle control, large atmosphere and vacuum selection range.
Quantity :
add to cart
Contact Now

Product Description:

        The double tube vacuum tube furnace uses alumina poly-crystalline fiber solidify furnace,  which can put two or more furnaces at the same time. Each quartz tube or corundum tube is equipped with an independent temperature control system, equipped with vacuum and protective gas interface, pressure relief valve and vacuum gauge, which can carry out a variety of different process tests at the same time. The equipment is small and beautiful in appearance, reasonable in structure design and easy to use.

Main Uses And Applicant Scope:

  Suitable for uniform calcination and drying of powder materials and granular materials, and ideal equipment for activated carbon, coking coal and sugar industry experiments and vacuum sample preparation and production. The experimental needs of the industry are metallurgy, machinery, light industry, commodity inspection, colleges and universities and scientific research departments, industrial and mining enterprises.
