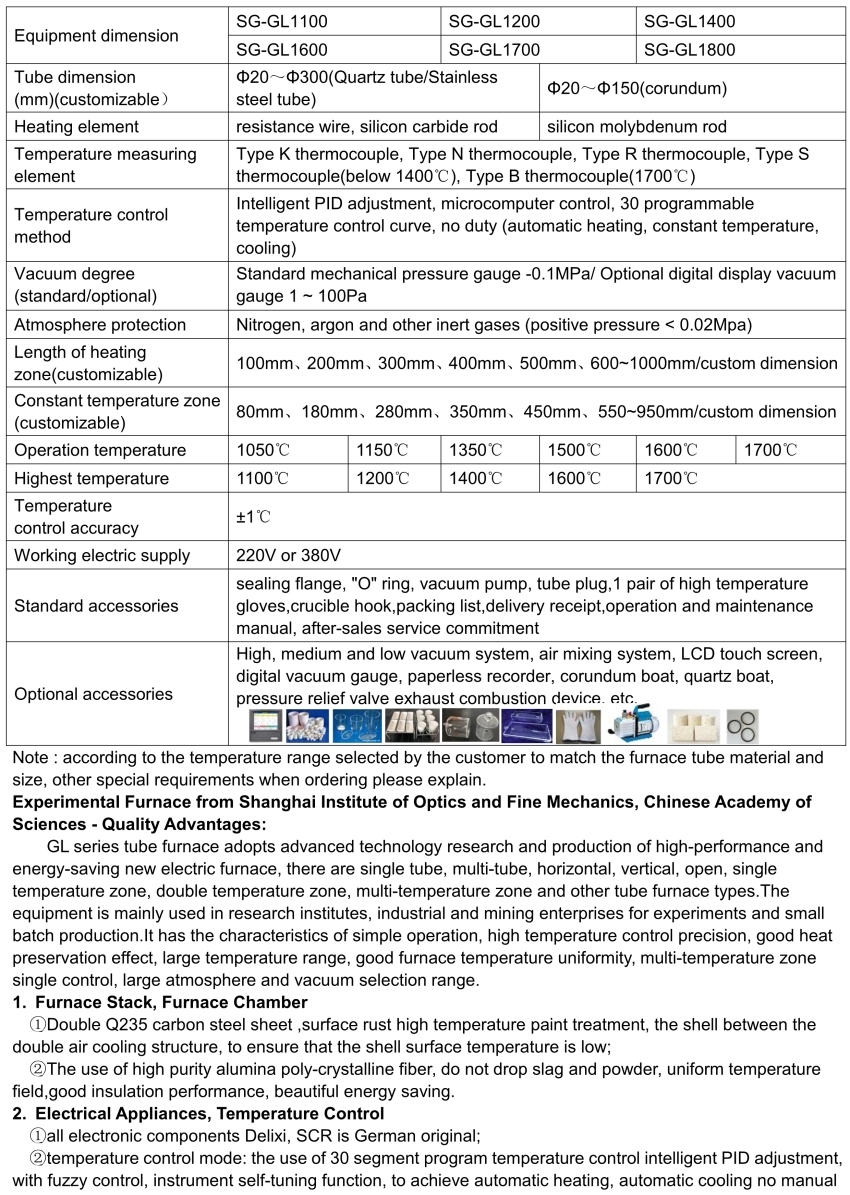

Model No: SG-GL1100 SG-GL1200 SG-GL1400,SG-GL1600,SG-GL1700,SG-GL1800

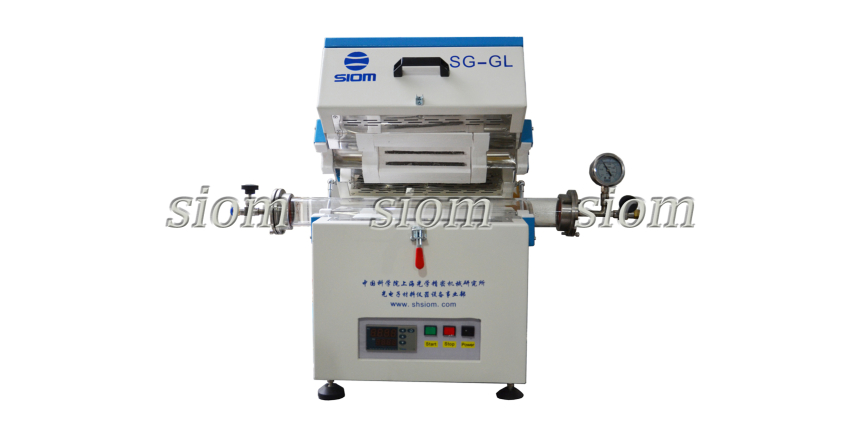

Energy-Saving Tube Furnace

GL series tube furnace adopts advanced technology research and production of high-performance andenergy-saving new electric furnace, there are single tube, multi-tube, horizontal, vertical, open, singletemperature zone, double temperature zone, multi-temperature zone and other tube furnace types.Theequipment is mainly used in research institutes, industrial and mining enterprises for experiments and smalbatch production.lt has the characteristics of simple operation, high temperature control precision, good heatpreservation effect, large temperature range, good furnace temperature unifomity, multi-temperature zonesingle control, large atmosphere and vacuum selection range.
Quantity :
add to cart
Contact Now

Production Description:

  Alumina poly-crystalline fiber curing furnace, the working temperature range can be selected according to different experimental needs of resistance wire, silicon carbon rod or silicon molybdenum rod heating, control using program temperature control system, two ends of the furnace tube stainless steel flange seal, can be vacuumed, through the atmosphere. The furnace structure can be optional open or closed.

Main Uses And Applicant Scope:

  Ideal equipment for high temperature sintering, research and development, low temperature treatment and small batch production of various materials in colleges and universities, research institutes, enterprises and institutions R & D centers. More precise atmosphere control can be provided for sample experiments. It can be used in protective gas, weakly reducing gas and under positive pressure. It has the characteristics of fast sintering speed, high use efficiency and wide application range.
