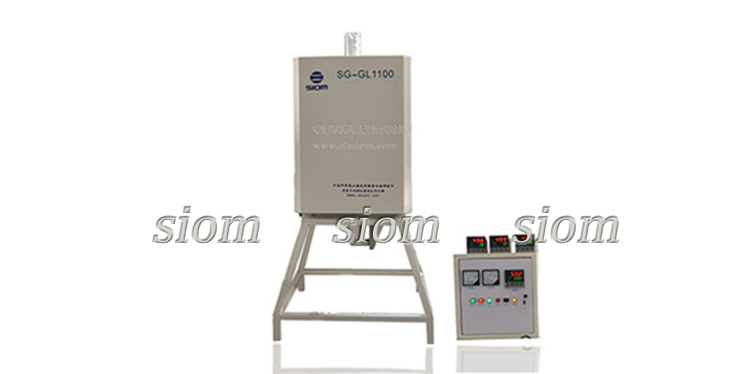

High Precision Vertical Tube Furnace
Production Description:
The two ends of the furnace tube of this equipment are sealed with stainless steel flanges, and the air nozzle, valve and pressure gauge are respectively installed on the stainless steel flanges, and different vacuum systems can achieve different vacuum effects. The furnace is a vertical structure with three separate controls, and the temperature can be controlled by gradient according to the sample requirements, and the temperature field is more uniform. The furnace tube is fixed on the support frame, and the furnace tube and flange are respectively fixed by supports. It is easy to use, simple to make, and has the advantages of temperature uniformity, low surface temperature, fast rising and falling temperature rate, and energy saving.
Main Uses And Applicant Scope:
Ideal equipment for high temperature sintering, research and development, low temperature treatment and small batch production of various materials in colleges and universities, scientific research institutes, enterprises and technical research and development centers. More precise atmosphere control can be provided for sample experiments. It can be used in protective gas, weakly reducing gas and under positive pressure. It has the characteristics of fast sintering speed, high use efficiency and wide application range.
