Model No: SG-GL1100 SG-GL1200 ,SG-GL1400,SG-GL1600 SG-GL1700 SG-GL1800

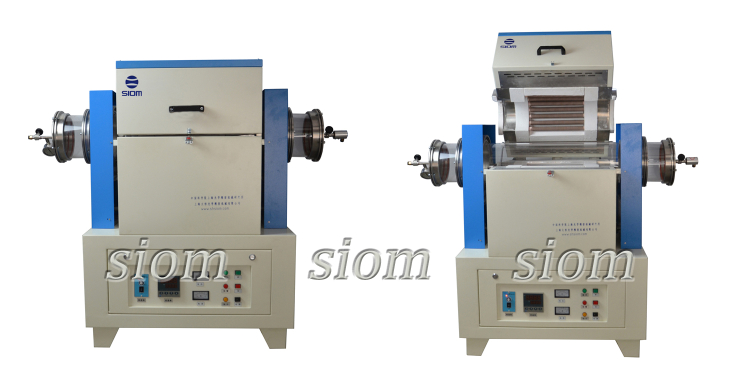

Multi-Function Rotary Tube Furnace

GL series tube furmace adopts advanced technology research and production of high-performance andenergy-saving new electric furnace, there are single tube, multi-tube, horizontal, vertical, open, singletemperature zone, double temperature zone, multi-temperature zone and other tube furace types.Theequipment is mainly used in research institutes, industrial and mining enterprises for experiments and smallbatch production.lt has the characteristics of simple operation, high temperature control precision, good heatpreservation effect, large temperature range, good furnace temperature uniformity, multi-temperature zonesingle control.large atmosphere and vacuum selection range
Quantity :
add to cart
Contact Now

Production Description:

  One end of the furnace tube is equipped with an electric gear rotating system, the rotation speed can be adjusted with a digital frequency converter to adjust the speed, and the other end is equipped with a bearing guide to ensure the stability of the furnace tube when rotating, and the furnace body can be tilted ≤30°, reciprocating convenient to take and put experimental materials, the furnace tube can be vacuum-pumped, and the atmosphere can be passed.

Main Uses And Applicant Scope:

  It is suitable for the chemical analysis of the ashes and carbonization of trace solid or powder samples in the laboratory of universities or institutes. It is also suitable for universities, scientific research institutes, industrial and mining enterprises to do high-temperature atmosphere sintering, atmosphere reduction, CVD experiment, vacuum annealing and other experiments and production.


Multi-Function Rotary Tube Furnaceelectric gear rotating systemMulti-Function Rotary Tube FurnaceMulti-Function Rotary Tube Furnaceelectric gear rotating systemMulti-Function Rotary Tube Furnaceelectric gear rotating system
