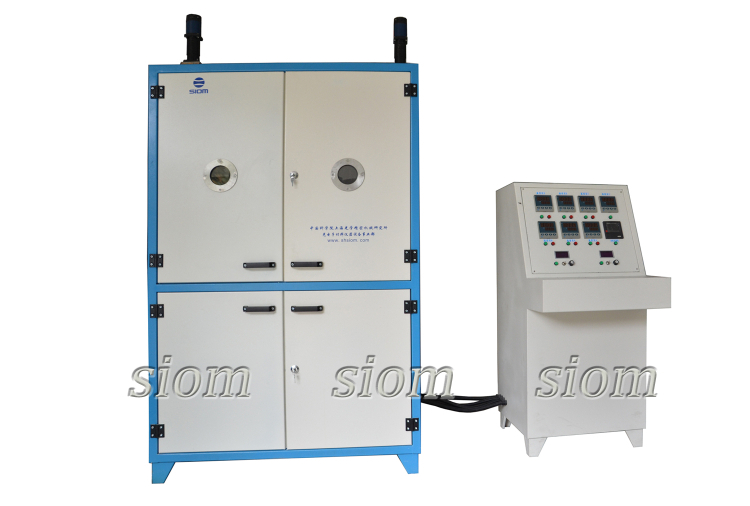

Zone Melting Furnace (Segmented Melting Furnace, Regional Melting Furnace)
Product Description:
Zone melting furnaces are ideal equipment for material purification, crystal growth and preparation of ultra-high purity raw materials and melting metering by using the principle of directional solidification. Optional resistance wire, silicon carbon rod, silicon molybdenum rod or medium frequency induction heating. Applications: semiconductor materials, metal materials, ceramic materials, optical materials.
Main Functions And Features:
1.Zone furnace structure can be divided into horizontal zone melting or vertical zone melting, single tube or multi-tube local heating;
2.High-precision moving rail and high-quality stepper motor make the transmission system more accurate and stable;
3.The temperature field frame uses high-quality high-temperature resistant materials to slowly move the heating device, and the melting zone moves along the length of the material and gradually takes away from the initial melting point;
4.Independent control cabinet, LCD touch screen display, to achieve data storage, output, can be copied to the computer through the U disk, curve real-time display so that the program setting faster, equipment operating state more intuitive, set data and operation are graphic interface, easy to operate; For data storage and output, multiple heating curves can be preset, and data can be copied to the computer for long-term storage through the USB interface.
Technical Parameter:
Production Model | SG-QRL1100 |
Zone Furnace Chamber Size | 50-60*150-250 |
Number Of Zone Furnaces | 4 sets, 12pcs (Equipped with temperature gradient hole) |
Chamber Material | High purity alumina fiber |
Chamber Dimension | According to the actual formulation |
Working Electric Supply | ADC 220V50/60HZ |
Rated Power | 12KW |
Service Temperature | ≦1050℃ |
Designed Temperature | 1100℃ |
Recommended Heating Rate | 1~15℃/min |
Temperature Control Method | Intelligent PID adjustment, microcomputer control, 30 programmable temperature control |
Weight | According to the actual formulation |
Heating Element | Resistance Wire |
Temperature Measure Element | S-type thermocouple |
Experimental Furnace from Shanghai Institute of Optics and Fine Mechanics, Chinese Academy of Sciences - Quality Advantages:
1. Furnace Shell And Furnace
① Double high-quality carbon steel plate, surface rust resistant high temperature paint treatment;
② Alumina poly-crystalline fiber high temperature furnace, beautiful and energy saving.
2.Electrical Appliances and Temperature Control
① All electronic components Delixi, thyristor is Japan or Germany original;
② For safe and efficient use, the use of imported copper isolation transformer;
③ Temperature control and detection are all used:Single platinum rhodium (S type) ≤1500℃;Double platinum rhodium (B type) ≤1800℃;
3. Research Team
Senior senior engineers, master of engineering and doctor of Shanghai Institute of Optics and Fine Mechanics of Chinese Academy of Sciences can jointly select experimental furnaces for your company and scientific research institutes, and senior designers can jointly design high-temperature furnaces.
