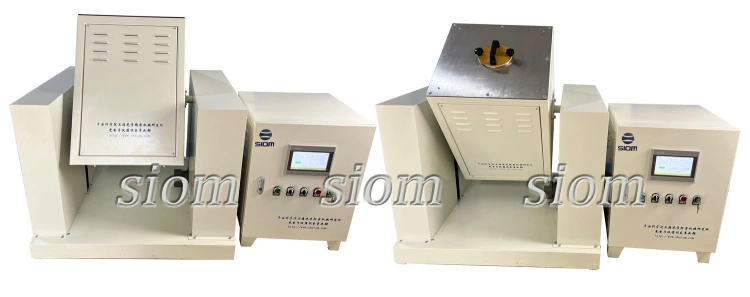

Rocking Furnace
Production Description:
The rocking furnace can set heating and cooling programs according to customer needs, featuring precise temperature control and equipped with internal 310S stainless steel tubing. By rocking, it enhances melt uniformity and grain refinement, making it widely applied in the preparation process of thermoelectric materials.
Equipment Parameter:
Designed Temperature | 1100℃ |
Service Temperature | ≤950℃ |
Rated Power | approximate 6KW(AC220V) |
Length Of Heating region | 500mm |
Furnace Tube Material | 310S stainless tube |
Furnace Tube Dimension | Φ80(Can be adjusted according to process requirements) |
Heat Element | resistance wire |
Temperature Control accuracy | ±1℃ |
Thermoelectric Couple | type K thermoelectric |
Swing Angle | Front: 90 degrees, Rear: 45 degrees (adjustable based on process requirements) |
Swing Speed | 0-30 revolutions per minute (adjustable based on process requirements) |
Temperature Control Method | LCD touchscreen display for data storage and output, allowing data to be copied to a computer via USB. Real-time curve display enables faster program setup and more intuitive equipment operation status. Both setting data and operation are presented in a graphical user interface for easy operation. For data storage and output, data can be copied to a computer via USB interface for long-term preservation. |
Designed Temperature | 1100℃ |
