Model No: SG-JSL1100 SG-JSL1200 SG-JSL1400 SG-JSL1600 SG-JSL1700SG-JSL1800

Rotary Touch Screen Well Furnace

The JSL series shaft furnace features an openable door and optional heating elements such asresistance wire, silicon carbon rods, or silicon molybdenum rods. The furnace body and chamber typicallyadopt a circular shaft structure. lt is specifically designed for high-temperature heat treatments such asquenching, annealing, and normalizing of metals, nonmetals, and other chemical compounds inlaboratories of universities, research institutes, and industrial and mining enterprises. it can be equippedwith a touchscreen for programmable control of the vacuum system, gas filing system, and temperaturecontrol system, offering easy and precise operation. it is primarily used in ceramics, metallurgy, electronicsglass, chemicals, machinery, building materials, metals, and many other customized processes includingtempering,hardening,stress relief, sintering, and welding.

Quantity :

add to cart

Contact Now

Production Description:

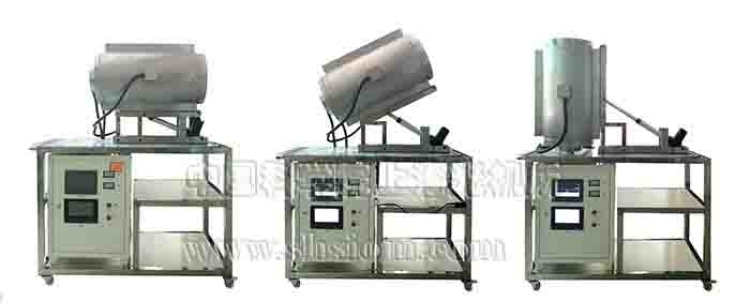

The SG-DZL1200 customizable high temperature well furnace can be placed horizontally or tilted to vertical by hand wheel. The furnace adopts alumina poly-crystalline fiber material, good thermal insulation performance, adopts silicon carbon rod as heating element, adopts programmed temperature control system, thyristor control, can work under multiple stations such as horizontal or vertical, so that the sample is fully heated to meet the needs of different experiments, and greatly improves its range of use.

Main Use And Application Scope:

The equipment can be widely used in ceramics, metallurgy, electronics, glass, chemical industry, machinery, refractory materials, special materials, building materials, universities, research institutes, industrial and mining enterprises to do powder roasting, ceramic sintering, high temperature experiment, material treatment, quality universities, research institutes, industrial and mining enterprises to do high temperature atmosphere sintering, CVD experiment, vacuum annealing, etc.

Main Functions And Features:

1.The furnace adopts alumina poly-crystalline fiber material, good thermal insulation performance, durable, high tensile strength, no stray ball, high purity, energy saving effect is obvious;
2.The heating element adopts silicon carbon rod;
3.The shell can be selected Q235/304 stainless steel design, the inner tank can be selected 310S stainless steel material;
4.Open power, leakage protection, high temperature alarm, to ensure the use of equipment.
5.Our software equipment through 485 or USB interface and computer interconnection, can achieve a single or multiple electric furnace remote control, real-time tracking, history, output reports and other functions; Paperless recording device can be installed to realize data storage and output.
6.Optional through the touch screen operation of the vacuum system, inflation system, temperature control system for program control, simple operation.
7.The furnace body can work in horizontal, vertical or any angle, greatly improving the range of use.
