Model No: SG-XL1100 SG-XL1200 SG-XL1400 SG-XL1600 SG-XL1700、SG-XL1800

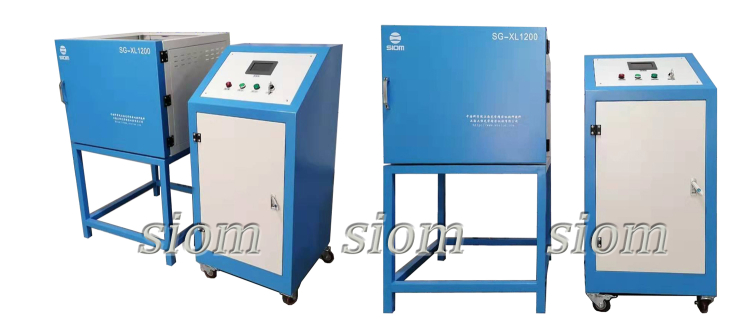

Split Box Furnace

XL series high temperature box furnace heating method has 3 kinds: according to different usetemperature, can choose resistance wire, silicon carbon rod, silicon molybdenum rod heating method.equipment with high temperature control precision, uniform temperature field, simple operation, fasttemperature rise, energy saving and other advantages, is scientific research colleges, universities, industrialand mining enterprises such as high temperature sintering, material annealing, quality detection of metal allovheat treatment ideal equipment.
Quantity :
add to cart
Contact Now

Product Description:

  The split box type furnace has the advantages of small volume, low energy consumption, light weight, beautiful appearance and reasonable structure design.The resistance wire is used as heating element, double shell structure and programmed temperature control system are adopted, and alumina poly-crystalline fiber material is used in the furnace for heat preservation and energy saving A separate control cabinet can participate in the operation of the central control system.

Main uses and application scope:

  Mainly used in universities, scientific research institutes,industrial and mining enterprises for high temperature sintering, metal annealing, material ashing, quality testing, but also suitable for electronics,medicine, special materials and other production and experiment.


Split Box FurnaceSplit Box Furnacedouble shell structureprogrammed temperature control systemSplit Box Furnacedouble shell structureprogrammed temperature control systemprogrammed temperature control system
