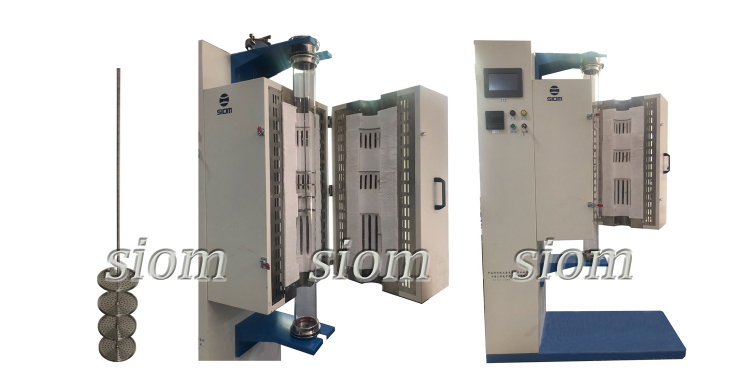

Three Temperature Zones Vertical Vacuum Tube Furnace
Production Description:
When the two ends of the furnace tube are made of stainless steel flanges, air noses, valves and pressure gauges are installed on the stainless steel flanges respectively, and different vacuum systems can achieve different vacuum effects. The furnace is a vertical structure with three separate controls, and the temperature can be controlled by gradient according to the sample requirements, and the temperature field is more uniform. The furnace tube is fixed on the support frame. The tubes and flanges are fixed with brackets respectively, which makes it convenient and easy to operate, and has the advantages of balanced temperature field, low surface temperature, fast rising and falling temperature rate, and energy saving.
Main Uses And Applicant Scope:
Ideal equipment for high temperature sintering, research and development, low temperature treatment and small batch production of various materials in colleges and universities, scientific research institutes, enterprises and technical research and development centers. More precise atmosphere control can be provided for sample experiments. It can be used in protective gas, weakly reducing gas and under positive pressure. It has the characteristics of fast sintering speed, high use efficiency and wide application range.
