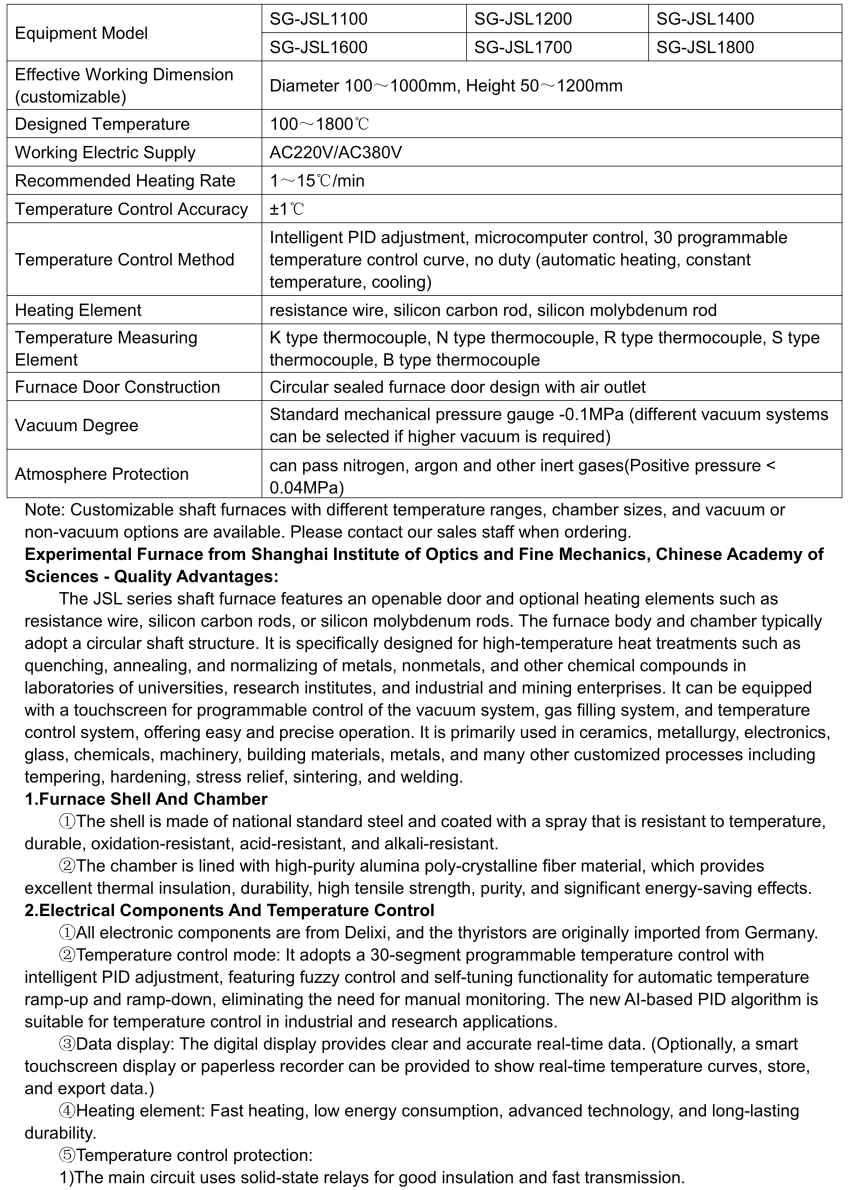

Model No: SG-JSL1100、SG-JSL1200、SG-JSL1400、SG-JSL1600、SG-JSL1700，SG-JSL1800

Viewing Window Well Furnace

The JSL series shaft furnace features an openable door and optional heating elements such asresistance wire, silicon carbon rods, or silicon molybdenum rods. The furnace body and chamber typicallyadopt a circular shaft structure. lt is specifically designed for high-temperature heat treatments such asquenching, annealing, and normalizing of metals, nonmetals, and other chemical compounds inlaboratories of universities, research institutes, and industrial and mining enterprises. it can be equippedwith a touchscreen for programmable control of the vacuum system, gas filing system, and temperaturecontrol system, offering easy and precise operation. it is primarily used in ceramics, metallurgy, electronicsglass, chemicals, machinery, building materials, metals, and many other customized processes includingtempering,hardening,stress relief, sintering, and welding.

Quantity :

add to cart

Contact Now

Production Introduction:

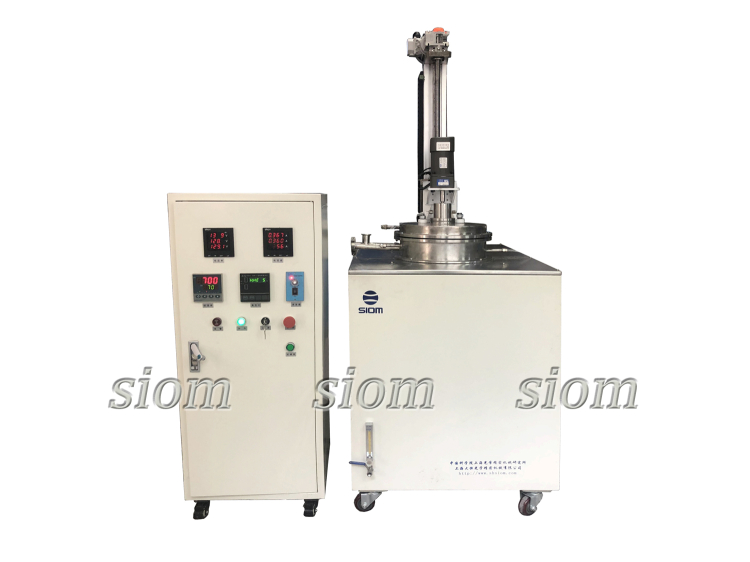

The shaft furnace with observation window adopts the top open type furnace door, with a Φ30 quartz observation window on each side of the furnace, and a Φ6mm test hole on the top. The top cover is open to water to form a dynamic seal. With resistance wire as heating element, double shell structure and temperature control system are adopted. The furnace adopts alumina poly-crystalline fiber material, which has good thermal insulation performance and energy saving.

Main Uses And Application Scope:
Suitable for ceramics, metallurgy, electronics, glass, chemical industry, machinery, refractory materials, special materials, building materials, metal, non-metal, alloy materials tempering, annealing, quenching, solid solution treatment, aging treatment and other heat treatment, and its phase transition process analysis, production and development of equipment.
Main Functions And Features:
1.The furnace adopts alumina polycrystalline fiber material, good thermal insulation performance, durable, high tensile strength, no stray ball, high purity, energy saving effect is obvious;
2.The heating element adopts resistance wire;
3.The shell can be selected Q235/304 stainless steel design, the inner tank can be selected 310S stainless steel material;
4.Open power, leakage protection, high temperature alarm, to ensure the use of equipment.
5.Our software equipment through 485 or USB interface and computer interconnection, can achieve a single or multiple electric furnace remote control, real-time tracking, history, output reports and other functions; Paperless recording device can be installed to realize data storage and output;
6.Optional through the touch screen operation of the vacuum system, inflation system, temperature control system for program control, simple operation.
